Panel layout

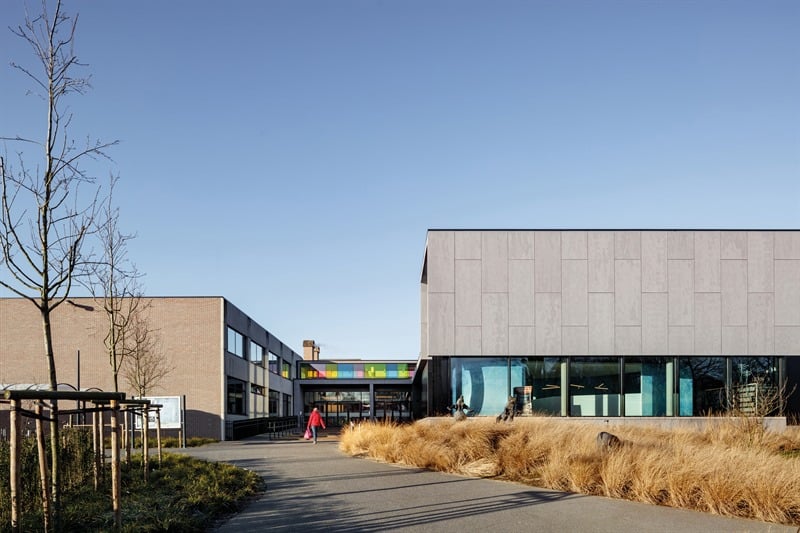

EQUITONE panels can be cut and arranged in many forms, limited only by your imagination. Whether a vertical, horizontal or angled layout is desired with large, small, narrow panels, laid either randomly or staggered, are all possible.
The pattern of the panels will have a bearing on the supporting frame.

Economic module sizes

Progettare con EQUITONE - ridurre lo sfrido scarto
Economic module sizes

High performance fibre cement panels can be made to any module and offer the architect and designer wide design freedom. When designing, the following information is aimed at providing the specifier with guidance on the most economic material usage from standard sheets. Sizes greater than half the maximum manufacturing lengths become progressively less economical in ratio to the distance downwards from full length to half length as indicated on the charts.
The shaded areas indicate the most uneconomic modules cut from a standard sheet size (based on 1220mm x 3050mm sheet) EQUITONE can provide support to optimalization calculations.
